Product Description

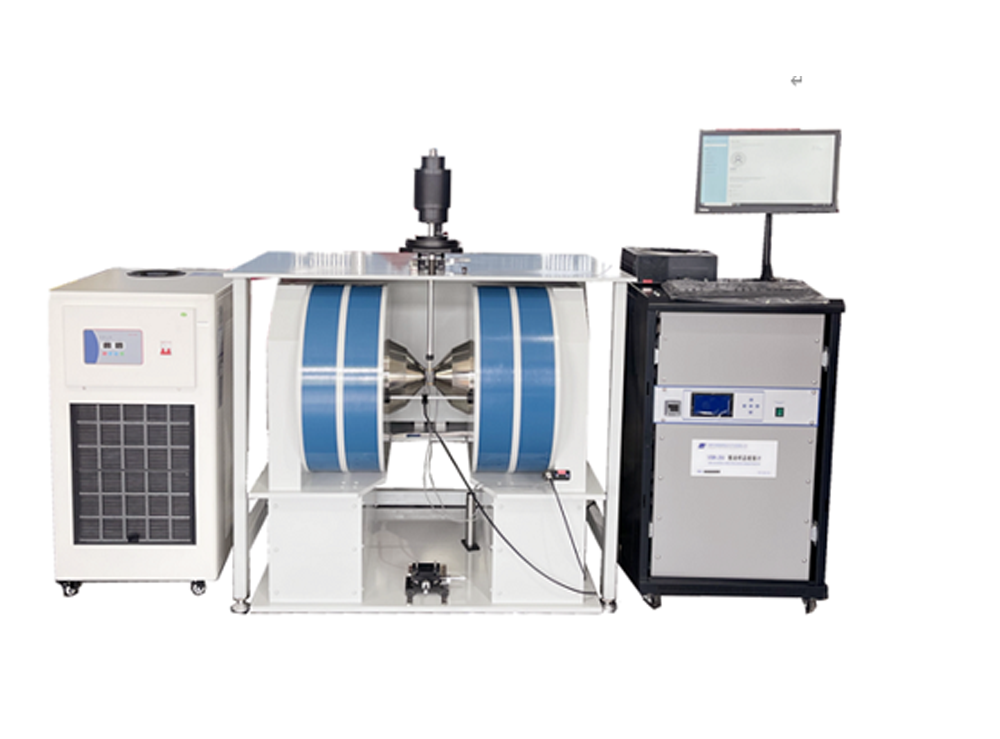

A vibrating sample magnetometer(VSM) is an instrument that is used to measure magnetic properties. It is also called a Foner magnetometer or M-H Curve Hysteresis Graph Test System.
VSM is composed of a master device, an electromagnet, a vibrator, a computer. The electromagnet source, the vibrator source, the magnetic moment measuring unit and the magnetic field measuring unit which all controlled by MPU (AT89C52) constitute the instrument. The instrument communicates to the computer with the standard RS-232-C serial interface, then enhanced systematicness of the instrument and operability of the hardware. Operating functions of the special complement software is powerful and software is used conveniently.
Learn More About Our Products
-
Variable-Magnetic-Field Permanent Magnet
Variable-Magnetic-Field Permanent Magnet is an innovative magnetic device that changes the magnetic field strength by adjusting the air gap, and which is widely used in various experiments and industrial applications that require variable magnetic fields. By combining precision mechanical design with high-performance rare earth materials, adjustable permanent magnets can flexibly adjust their magnetic field strength without the need for excitation current, providing multiple magnetic field environments to meet different application needs.
-
Solenoid Coils
A solenoid coil is an efficient electromagnetic device, consisting of conductor wires made of highly conductive materials winding in a tight spiral shape, capable of generating a uniform and strong magnetic field. Our solenoid has the characteristics of good uniformity, small size and high magnetic field.<br/> The solenoid is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time. and can be designed and produced according to user's application conditions、coil size、structural and magnetic field requirements.
-
SBV Series Eectromagnet
The SBV electromagnet is a double-yoke(H-Frame) , variable air gap magnetic field generation equipment with one pole being adjustable. From the excitation of the excitating power source, the field vector forms a closed loop, and a high uniform magnetic field can be generated between two poles, and the field direction is along the axial direction of pole caps. All SBV electromagnets are equipped with a pair of standard replaceable pole caps made of purity iron, which can be replaced to suit to individual experiment requirements. The pure-iron structure is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time.
-
HEA Series Power Amplifiers
HEA series power amplifiers are specially designed for the use of exciter, which can provide a stable and adjustable excitation current for the exciter.Under the action of the excitation current, the exciter generates an excitation force on the tested component that corresponds to the excitation current, and the magnitude and phase of this force are only related to the excitation current and the characteristics of the exciter itself, but which is independent of the tested component.<br/> HEA series linear power amplifiers has below advantages: stable performance, strong protection function, easy to operation, no impulse during startup, no pollution to the environment, safe and reliable use. In addition, HEA series linear power amplifiers have good adaptability, which is suitable for the impedance of its basic matching load. It is widely used in excitation of inductive loads such as electromagnets and Helmholtz coils.
-

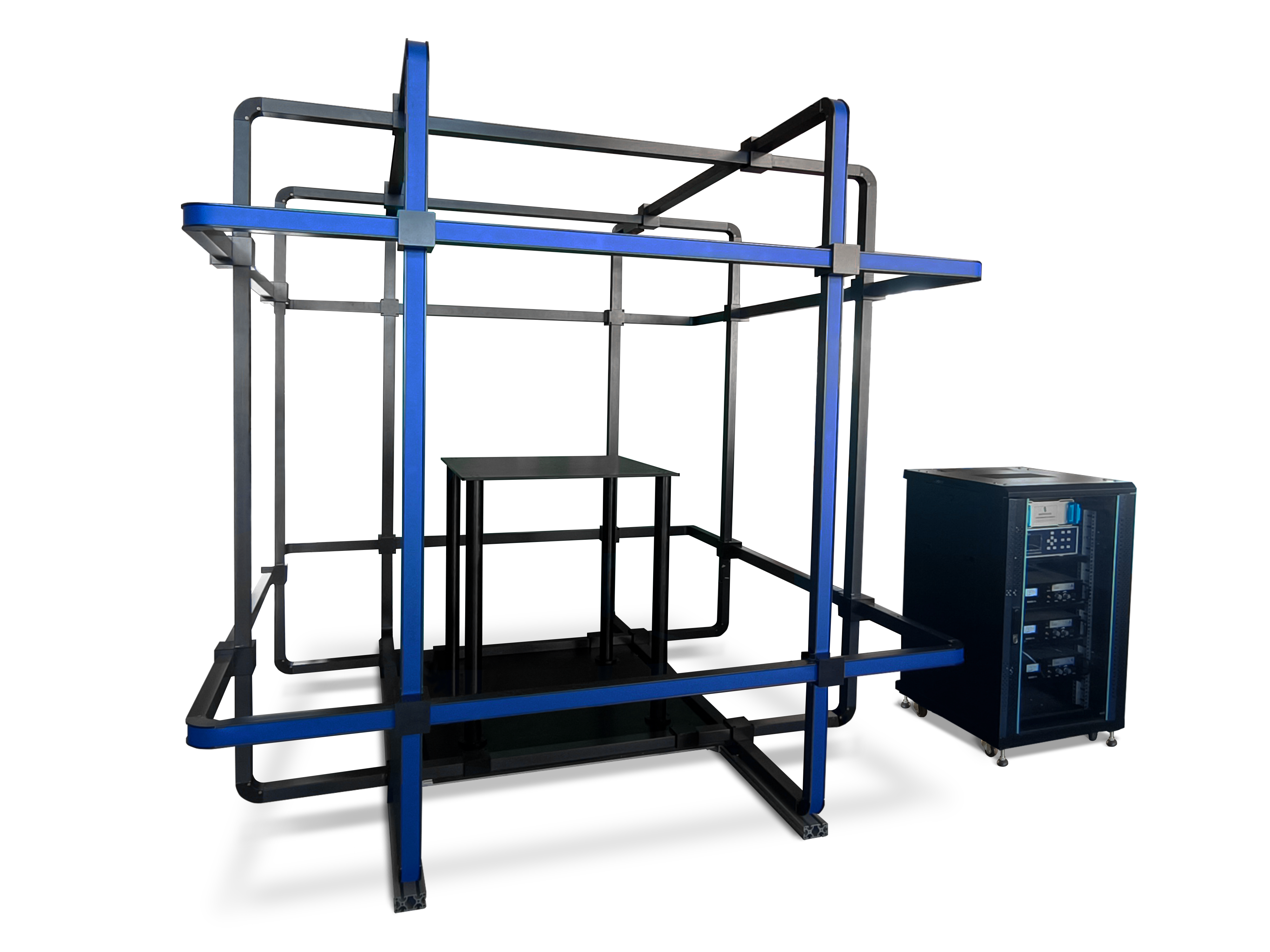

Square Helmholtz Coil
The Square Helmholtz coil features a large homogeneity volume and a wide magnetic field working gap. The square coil is generally used for testing the large-sized sample, and the side length of the coil can reach 1 meter or even several meters, and it can be designed as the single-axis, two-axis or three-axis coil. The square coil is applied for Standard Magnetic Field Generation, Offset and Compensation of the Earth's Magnetic Field, Geomagnetic Environment Simulation, Judgment of Magnetic Shielding Effect, Electromagnetic Interference Simulation Experiments, Calibration of Hall Sensors and Magnetometers, Biological Magnetic Field Studies and Material Magnetic Characterization studies. Our Square Helmholtz Coil can be customer-designed and customer-made according to the user’s individual parameter requirements.
-
Three-Axis Equal-Diameter Coil
The Three-Axis Equal-Diameter Coil, which is a type of three-axis Helmholtz coil exclusively developed by our company, features the nominal diameter coil, the same number of winding turns, and the same specification of wires per axis.<br/> This winding construction allows the Three-Axis Equal-Diameter Coil to have the same resistance, inductance, homogeneity, and B/I coefficient per axis; The coil per axis is fixed to each other in the embedded form, of which this mechanical structure makes the coil to feature a small size and the greater accessibility to the working gap; the whole former is made of non-magnetic PMMA material, which is applied for the study of low and weak magnetic field, and which is very suitable for the shielding room and the magnetic shield. The highest magnetic field of a three-axis equal diameter coil can be designed to be from 0 to 5 Gs.
-
HALL EFFECT MEASUREMENT SYSTEM
HALL EFFECT MEASUREMENT SYSTEM is used to measure the important parameters of Semiconductor Materials such as Carrier Concentration, Mobility, Resistivity, and Hall Coefficient, and so on. These parameters must be grasped and controlled in advance in order to understand the electrical characteristics of semiconductor materials. Therefore, the Hall Effect Measurement System is an indispensable tool for understanding and studying the electrical characteristics of Semiconductor Devices and Semiconductor Materials. The experimental results are automatically calculated by the software, and the Bulk Carrier Concentration, Sheet Carrier Concentration, Mobility, Resistivity, Hall Coefficient, Magneto-Resistance, and other parameters can be obtained at the same time.
-
Standard Permanent Magnet
A standard Magnet is a kind of permanent magnet which is specially designed for Hall Element Calibration,capable of generating a stable and uniform magnetic field between two magnetic pole.<br/> The Standard Magnets are manufactured with high-performance rare earth materials to ensure long-term maintenance of its excellent magnetic properties, and which is widely used in a variety of fields requiring accurate magnetic field calibration, such as laboratories, metrology institutes and industrial testing equipment
-

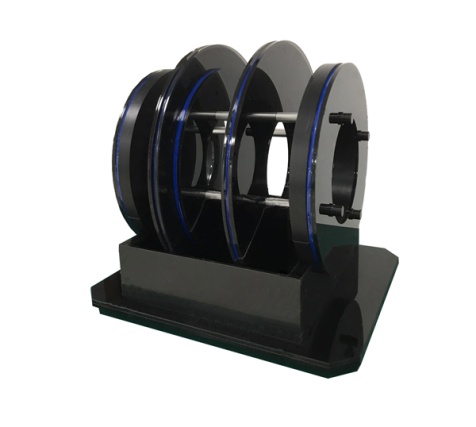

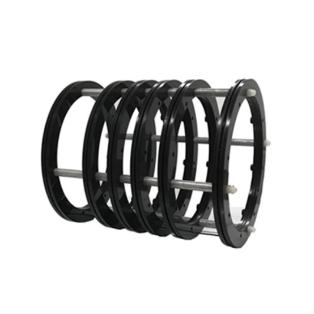

Magnetic-Moment-Free Coil
The Magnetic-Moment-Free Coil is composed of several pairs of coils, which are installed in a certain geometric structure, and of which the certain number of coil’s turns and a certain current direction make the magnetic field outside the Magnetic-Moment-Free Coil attenuate rapidly and make the magnetic moment of the Magnetic-Moment-Free Coil be zero. One of outstanding advantages of the moment-free coil is that it does not produce magnetic interference to the environment outside a certain distance from the Magnetic-Moment-Free coil during operation, which means that it is very significant for the simultaneous operation of multiple systems; In addition, the moment-free coil does not magnetize the adjacent magnetic substance, therefore, it does not bring extra errors to the moment-free coil in this respect.
VSM Product Accessories
-
Power Line
WD type electromagnetic power cord
-
Probe Holder
WD type electromagnetic probe holder
-
Pure Iron Tip
WD type electromagnet pure iron pole head
-
High precision electric control turntable
WD type high-precision electromagnetic control turntable
-
Manual Turntable
WD type manual turntable
-
Closed Loop Control System
WD type closed-loop control system
The field air gap is adjustable in both directions, with a single yoke structure and a horizontal magnetic field direction; Standing upright and having a wide operating space, it is convenient for taking and placing samples and combining with other equipment, making it one of the most common electromagnetic magnets in magnetic research. Used for Hall effect research and magnetoresistance effect research.
