Choose The One That Suits Your Needs Magnetic Field Coils
-
Learn MoreSolenoid Coils
Product Description
A solenoid coil is an efficient electromagnetic device, consisting of conductor wires made of highly conductive materials winding in a tight spiral shape, capable of generating a uniform and strong magnetic field. Our solenoid has the characteristics of good uniformity, small size and high magnetic field.
The solenoid is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time. and can be designed and produced according to user's application conditions、coil size、structural and magnetic field requirements. -
Learn MoreThree-Axis Equal-Diameter Coil
Product Descriptions
The Three-Axis Equal-Diameter Coil, which is a type of three-axis Helmholtz coil exclusively developed by our company, features the nominal diameter coil, the same number of winding turns, and the same specification of wires per axis.
This winding construction allows the Three-Axis Equal-Diameter Coil to have the same resistance, inductance, homogeneity, and B/I coefficient per axis; The coil per axis is fixed to each other in the embedded form, of which this mechanical structure makes the coil to feature a small size and the greater accessibility to the working gap; the whole former is made of non-magnetic PMMA material, which is applied for the study of low and weak magnetic field, and which is very suitable for the shielding room and the magnetic shield. The highest magnetic field of a three-axis equal diameter coil can be designed to be from 0 to 5 Gs. -
Learn MoreSquare Helmholtz Coil
Product Descriptions
The Square Helmholtz coil features a large homogeneity volume and a wide magnetic field working gap. The square coil is generally used for testing the large-sized sample, and the side length of the coil can reach 1 meter or even several meters, and it can be designed as the single-axis, two-axis or three-axis coil. The square coil is applied for Standard Magnetic Field Generation, Offset and Compensation of the Earth's Magnetic Field, Geomagnetic Environment Simulation, Judgment of Magnetic Shielding Effect, Electromagnetic Interference Simulation Experiments, Calibration of Hall Sensors and Magnetometers, Biological Magnetic Field Studies and Material Magnetic Characterization studies. Our Square Helmholtz Coil can be customer-designed and customer-made according to the user’s individual parameter requirements. -

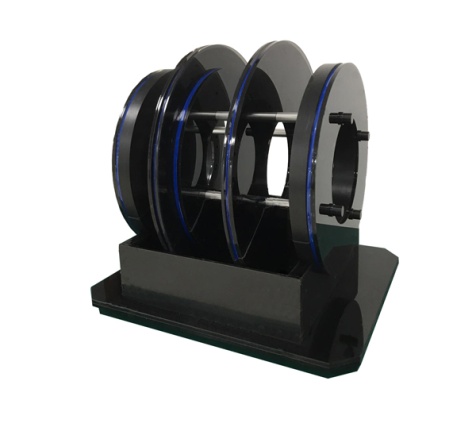

Learn MoreMagnetic-Moment-Free Coil
Product Descriptions
The Magnetic-Moment-Free Coil is composed of several pairs of coils, which are installed in a certain geometric structure, and of which the certain number of coil’s turns and a certain current direction make the magnetic field outside the Magnetic-Moment-Free Coil attenuate rapidly and make the magnetic moment of the Magnetic-Moment-Free Coil be zero. One of outstanding advantages of the moment-free coil is that it does not produce magnetic interference to the environment outside a certain distance from the Magnetic-Moment-Free coil during operation, which means that it is very significant for the simultaneous operation of multiple systems; In addition, the moment-free coil does not magnetize the adjacent magnetic substance, therefore, it does not bring extra errors to the moment-free coil in this respect. -

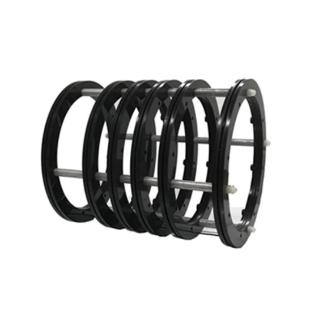

Learn MoreHigh Homogeneity coil
Product Descriptions
High Homogeneity coil, which is composed of multi-ring coils arranged along the axial direction, includes the common coils such as Barker Coil, Braunbek Coil, Maxwell Coil, Rubens Coil, and Magnetic-Moment-Free coil. Compared with the Helmholtz coil, the combined coil features the better magnetic field homogeneity under the same diameter, the higher homogeneity and larger homogeneity volume in the effective space, and is suitable for the high-precision and large-range magnetic field needs. This design can meet any parameter customization requirements.
Learn More About Our Products
-
Variable-Magnetic-Field Permanent Magnet
Variable-Magnetic-Field Permanent Magnet is an innovative magnetic device that changes the magnetic field strength by adjusting the air gap, and which is widely used in various experiments and industrial applications that require variable magnetic fields. By combining precision mechanical design with high-performance rare earth materials, adjustable permanent magnets can flexibly adjust their magnetic field strength without the need for excitation current, providing multiple magnetic field environments to meet different application needs.
-
The dynamic magnetic field active geomagnetic shielding system
The dynamic magnetic field shielding effect can reach a higher level (better than 5 nT). By using AC current to generate a magnetic field, it has higher DC and AC magnetic field shielding efficiency, more accurate trajectory tracking function, larger range, and higher response speed. The ability to generate magnetic fields with three components X, Y, and Z within the range of (0-100000 nT) magnetic fields can be precise up to 5 nT, making products and experiments in scientific research, military industry, and medical care extremely meaningful and widely used.
-
Three-Axis Equal-Diameter Coil
The Three-Axis Equal-Diameter Coil, which is a type of three-axis Helmholtz coil exclusively developed by our company, features the nominal diameter coil, the same number of winding turns, and the same specification of wires per axis.<br/> This winding construction allows the Three-Axis Equal-Diameter Coil to have the same resistance, inductance, homogeneity, and B/I coefficient per axis; The coil per axis is fixed to each other in the embedded form, of which this mechanical structure makes the coil to feature a small size and the greater accessibility to the working gap; the whole former is made of non-magnetic PMMA material, which is applied for the study of low and weak magnetic field, and which is very suitable for the shielding room and the magnetic shield. The highest magnetic field of a three-axis equal diameter coil can be designed to be from 0 to 5 Gs.
-
Standard Permanent Magnet
A standard Magnet is a kind of permanent magnet which is specially designed for Hall Element Calibration,capable of generating a stable and uniform magnetic field between two magnetic pole.<br/> The Standard Magnets are manufactured with high-performance rare earth materials to ensure long-term maintenance of its excellent magnetic properties, and which is widely used in a variety of fields requiring accurate magnetic field calibration, such as laboratories, metrology institutes and industrial testing equipment
-
HEA Series Power Amplifiers
HEA series power amplifiers are specially designed for the use of exciter, which can provide a stable and adjustable excitation current for the exciter.Under the action of the excitation current, the exciter generates an excitation force on the tested component that corresponds to the excitation current, and the magnitude and phase of this force are only related to the excitation current and the characteristics of the exciter itself, but which is independent of the tested component.<br/> HEA series linear power amplifiers has below advantages: stable performance, strong protection function, easy to operation, no impulse during startup, no pollution to the environment, safe and reliable use. In addition, HEA series linear power amplifiers have good adaptability, which is suitable for the impedance of its basic matching load. It is widely used in excitation of inductive loads such as electromagnets and Helmholtz coils.
-
Single-Axis Helmholtz Coil
The Helmholtz coil is a device composed of two sets of identical circular coils placed parallel to the same axis and run current in the same direction to generate a uniform magnetic field. Helmholtz coils can be customized by through adjusting the coil diameter, required magnetic field, working time, structural requirements, and dissipation requirements (air cooling or water cooling).
-

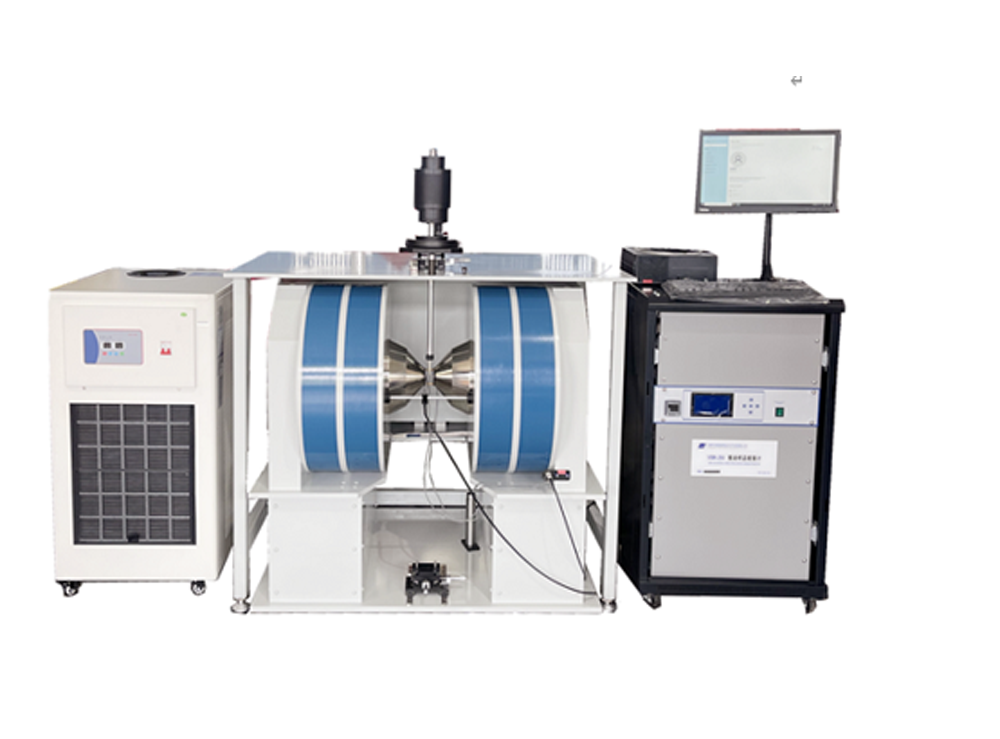

VSM
A vibrating sample magnetometer(VSM) is an instrument that is used to measure magnetic properties. It is also called a Foner magnetometer or M-H Curve Hysteresis Graph Test System. <br/> VSM is composed of a master device, an electromagnet, a vibrator, a computer. The electromagnet source, the vibrator source, the magnetic moment measuring unit and the magnetic field measuring unit which all controlled by MPU (AT89C52) constitute the instrument. The instrument communicates to the computer with the standard RS-232-C serial interface, then enhanced systematicness of the instrument and operability of the hardware. Operating functions of the special complement software is powerful and software is used conveniently.
-
Solenoid Coils
A solenoid coil is an efficient electromagnetic device, consisting of conductor wires made of highly conductive materials winding in a tight spiral shape, capable of generating a uniform and strong magnetic field. Our solenoid has the characteristics of good uniformity, small size and high magnetic field.<br/> The solenoid is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time. and can be designed and produced according to user's application conditions、coil size、structural and magnetic field requirements.
-
The static geomagnetic active shielding system
The static magnetic field active shielding system can offset the magnetic field fluctuations of the geomagnetic field in real time, thereby generating a 10nT zero magnetic environment in the geomagnetic environment. For example, the gradient magnetic field of 1nT or 0.1nT can be generated in the shielding room or shielding cylinder, the system can also generate any set magnetic field in three-dimensional components for scientific experiments and simulation of geomagnetic changes.
Magnetic Field Coils Product Accessories
-
Closed Loop Control System
WD type closed-loop control system
-
Power Line
WD type electromagnetic power cord
-
Probe Holder
WD type electromagnetic probe holder
-
Pure Iron Tip
WD type electromagnet pure iron pole head
-
High precision electric control turntable
WD type high-precision electromagnetic control turntable
-
Manual Turntable
WD type manual turntable
The field air gap is adjustable in both directions, with a single yoke structure and a horizontal magnetic field direction; Standing upright and having a wide operating space, it is convenient for taking and placing samples and combining with other equipment, making it one of the most common electromagnetic magnets in magnetic research. Used for Hall effect research and magnetoresistance effect research.
