Helmholtz Coil
Search For Your Exact Product Here
Choose The One That Suits Your Needs Helmholtz Coil
-

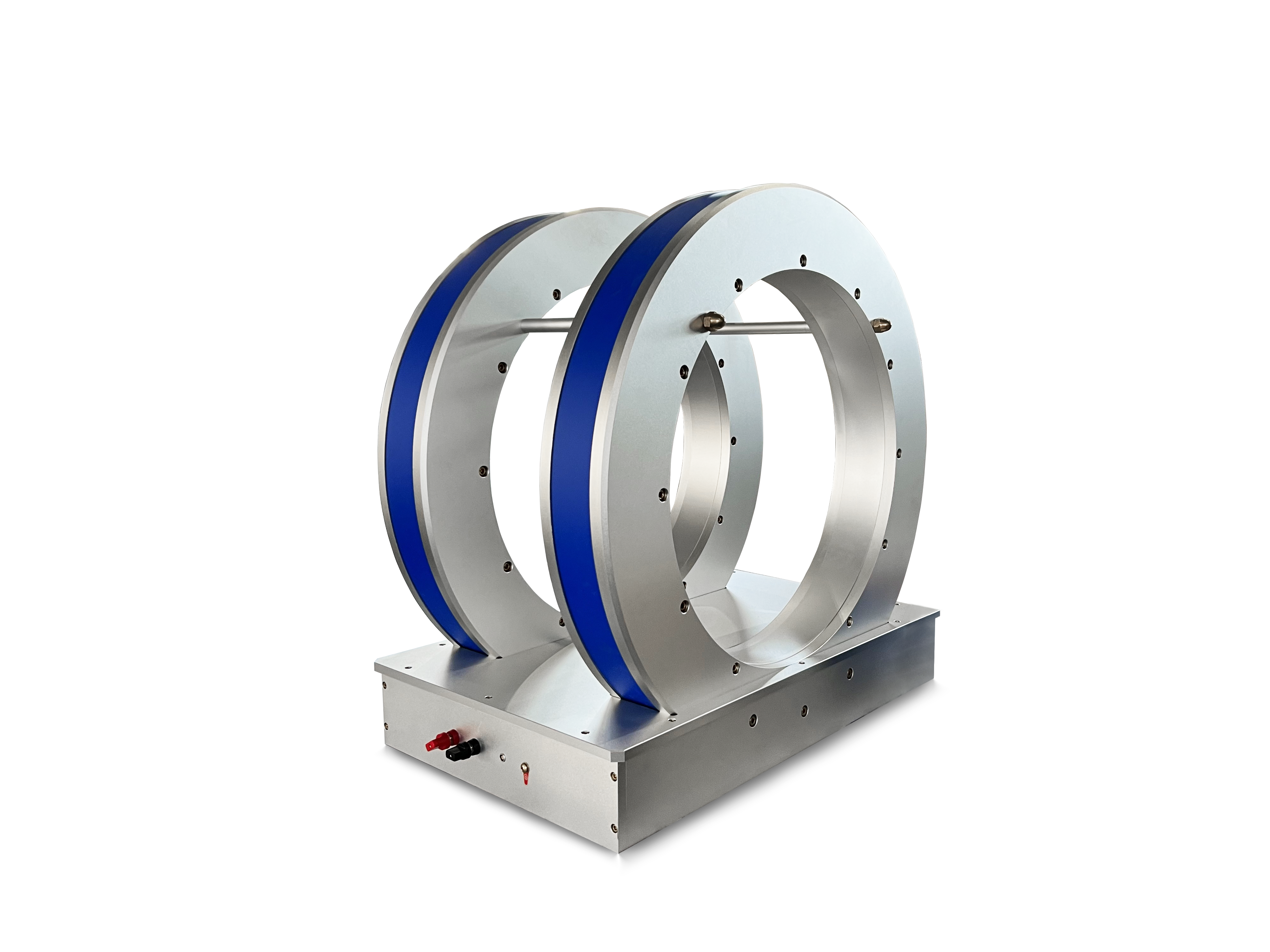

Learn MoreSingle-Axis Helmholtz Coil
Product Description
The Helmholtz coil is a device composed of two sets of identical circular coils placed parallel to the same axis and run current in the same direction to generate a uniform magnetic field. Helmholtz coils can be customized by through adjusting the coil diameter, required magnetic field, working time, structural requirements, and dissipation requirements (air cooling or water cooling). -
Learn MoreThree-Axis Helmholtz Coil
Product Description
The three-axis Helmholtz coil is composed of 3 pairs of Helmholtz coils arranged along three orthogonal axes, which can simultaneously generate uniform magnetic fields in the direction of x-, y-, or z-axis.Helmholtz coils can be customized by through adjusting the coil diameter, required magnetic field, working time, structural requirements, and dissipation requirements (air cooling or water cooling).
Learn More About Our Products
-

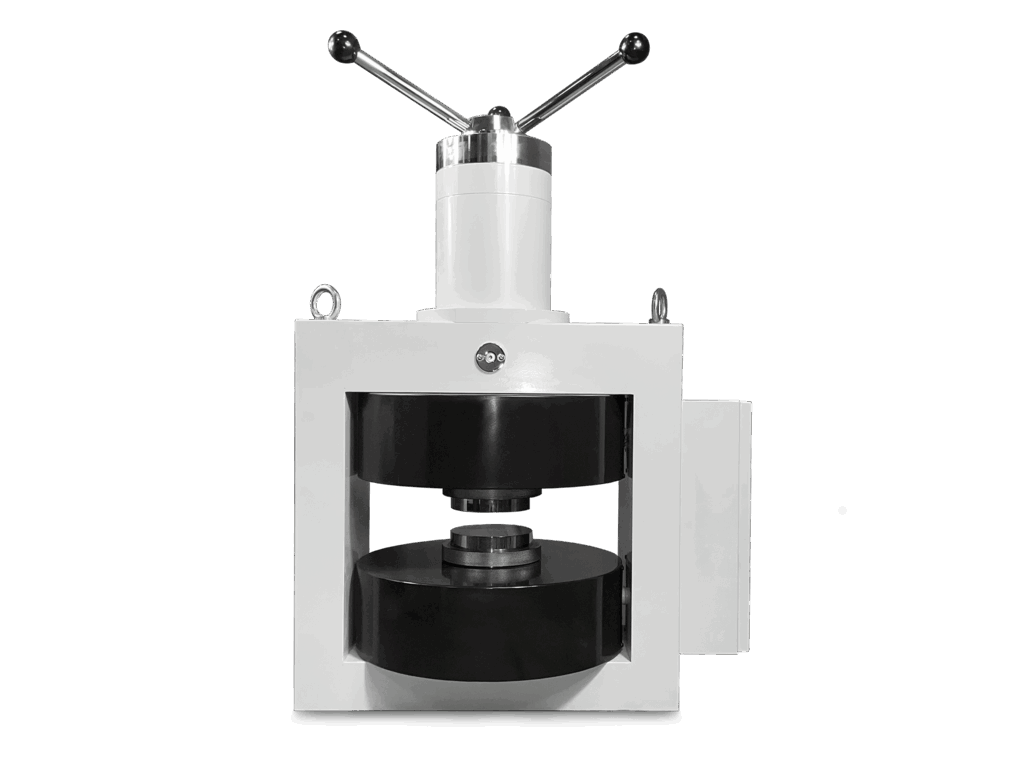

SBV Series Eectromagnet
The SBV electromagnet is a double-yoke(H-Frame) , variable air gap magnetic field generation equipment with one pole being adjustable. From the excitation of the excitating power source, the field vector forms a closed loop, and a high uniform magnetic field can be generated between two poles, and the field direction is along the axial direction of pole caps. All SBV electromagnets are equipped with a pair of standard replaceable pole caps made of purity iron, which can be replaced to suit to individual experiment requirements. The pure-iron structure is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time.
-
SB Series Electromagnet
The SB electromagnet is a double-yoke(H-Frame) , variable air gap magnetic field generation equipment with each pole being adjustable. From the excitation of the excitating power source, the field vector forms a closed loop, and a high uniform magnetic field can be generated between two poles, and the field direction is along the axial direction of pole caps. All SB electromagnets are equipped with a pair of standard replaceable pole caps made of purity iron, which can be replaced to suit to individual experiment requirements. The pure-iron structure is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time.
-
Square Helmholtz Coil
The Square Helmholtz coil features a large homogeneity volume and a wide magnetic field working gap. The square coil is generally used for testing the large-sized sample, and the side length of the coil can reach 1 meter or even several meters, and it can be designed as the single-axis, two-axis or three-axis coil. The square coil is applied for Standard Magnetic Field Generation, Offset and Compensation of the Earth's Magnetic Field, Geomagnetic Environment Simulation, Judgment of Magnetic Shielding Effect, Electromagnetic Interference Simulation Experiments, Calibration of Hall Sensors and Magnetometers, Biological Magnetic Field Studies and Material Magnetic Characterization studies. Our Square Helmholtz Coil can be customer-designed and customer-made according to the user’s individual parameter requirements.
-
YPD Series DC Power Supply
This power supply is a high stability bipolar constant current power supply (smooth zero crossing commutation without delay). The power supply adopts a linear power supply structure, with high output current stability, low ripple and noise. The output current of the power supply can be continuously changed between positive and negative rated maximum current, and the current is smooth and continuous zero, which can generate a smooth and stable magnetic field in the electromagnet or coil. With our high precision Gauss meter and probe (optional), the power supply can operate in magnetic field mode. The magnetic field value can be directly set in magnetic field mode,The power supply will adjust the output current to make the electromagnet quickly reach the set magnetic field, convenient and fast, and the magnetic field is stable.It can control the field independently or scan the magnetic field continuously. The current mode and magnetic field mode can be switched at any time according to the need, and the operation is flexible.
-
VSM
A vibrating sample magnetometer(VSM) is an instrument that is used to measure magnetic properties. It is also called a Foner magnetometer or M-H Curve Hysteresis Graph Test System. <br/> VSM is composed of a master device, an electromagnet, a vibrator, a
-

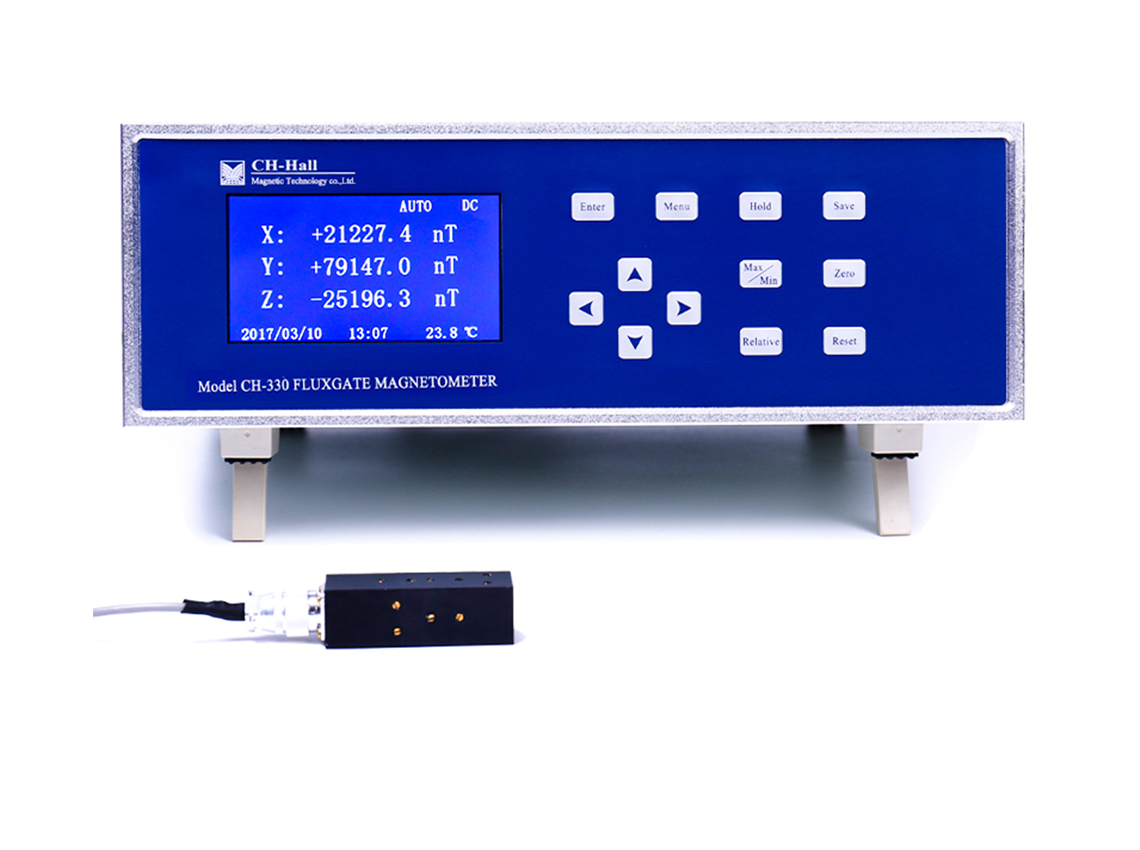

Flux-gate magnetometer
Flux-gate magnetometer is a that accurately measures weak static and low-frequency vector magnetic fields,which has the characteristics of high stability, high linearity, high-precision and full digitization. Compared with magnetic field measurement instruments based on Hall effect principle or magnetoresistance effect principle, it is the best choice for measuring weak magnetic fields. It has digital and analog signal output, and a unique CAN bus network interface suitable for multi array magnetic field testing. It is widely used in scientific research, military industry, aerospace and other departments
-
Magnetic-Moment-Free Coil
The Magnetic-Moment-Free Coil is composed of several pairs of coils, which are installed in a certain geometric structure, and of which the certain number of coil’s turns and a certain current direction make the magnetic field outside the Magnetic-Moment-Free Coil attenuate rapidly and make the magnetic moment of the Magnetic-Moment-Free Coil be zero. One of outstanding advantages of the moment-free coil is that it does not produce magnetic interference to the environment outside a certain distance from the Magnetic-Moment-Free coil during operation, which means that it is very significant for the simultaneous operation of multiple systems; In addition, the moment-free coil does not magnetize the adjacent magnetic substance, therefore, it does not bring extra errors to the moment-free coil in this respect.
-
The dynamic magnetic field active geomagnetic shielding system
The dynamic magnetic field shielding effect can reach a higher level (better than 5 nT). By using AC current to generate a magnetic field, it has higher DC and AC magnetic field shielding efficiency, more accurate trajectory tracking function, larger range, and higher response speed. The ability to generate magnetic fields with three components X, Y, and Z within the range of (0-100000 nT) magnetic fields can be precise up to 5 nT, making products and experiments in scientific research, military industry, and medical care extremely meaningful and widely used.
-
VSM
A vibrating sample magnetometer(VSM) is an instrument that is used to measure magnetic properties. It is also called a Foner magnetometer or M-H Curve Hysteresis Graph Test System. <br/> VSM is composed of a master device, an electromagnet, a vibrator, a
Helmholtz Coil Product Accessories
-
Power Line
WD type electromagnetic power cord
-
Probe Holder
WD type electromagnetic probe holder
-
Pure Iron Tip
WD type electromagnet pure iron pole head
-
High precision electric control turntable
WD type high-precision electromagnetic control turntable
-
Manual Turntable
WD type manual turntable
-
Closed Loop Control System
WD type closed-loop control system
The field air gap is adjustable in both directions, with a single yoke structure and a horizontal magnetic field direction; Standing upright and having a wide operating space, it is convenient for taking and placing samples and combining with other equipment, making it one of the most common electromagnetic magnets in magnetic research. Used for Hall effect research and magnetoresistance effect research.
