Permanent Magnet
Search For Your Exact Product Here
Choose The One That Suits Your Needs Permanent Magnet
-

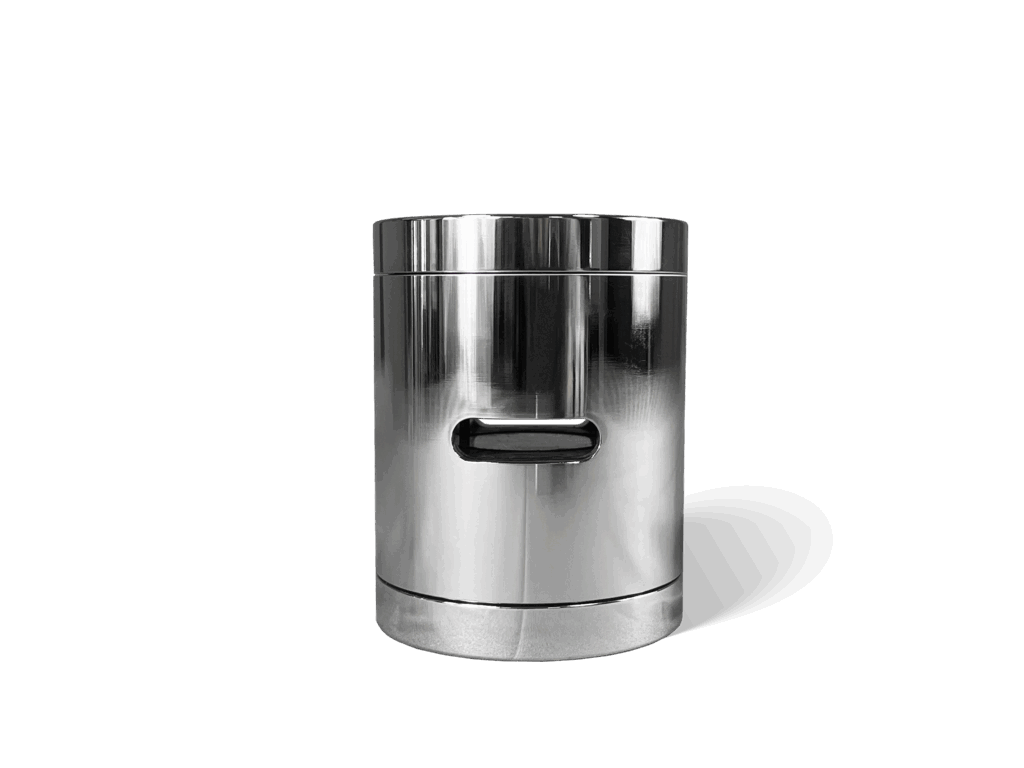

Learn MoreStandard Permanent Magnet
Product Description
A standard Magnet is a kind of permanent magnet which is specially designed for Hall Element Calibration,capable of generating a stable and uniform magnetic field between two magnetic pole.
The Standard Magnets are manufactured with high-performance rare earth materials to ensure long-term maintenance of its excellent magnetic properties, and which is widely used in a variety of fields requiring accurate magnetic field calibration, such as laboratories, metrology institutes and industrial testing equipment -

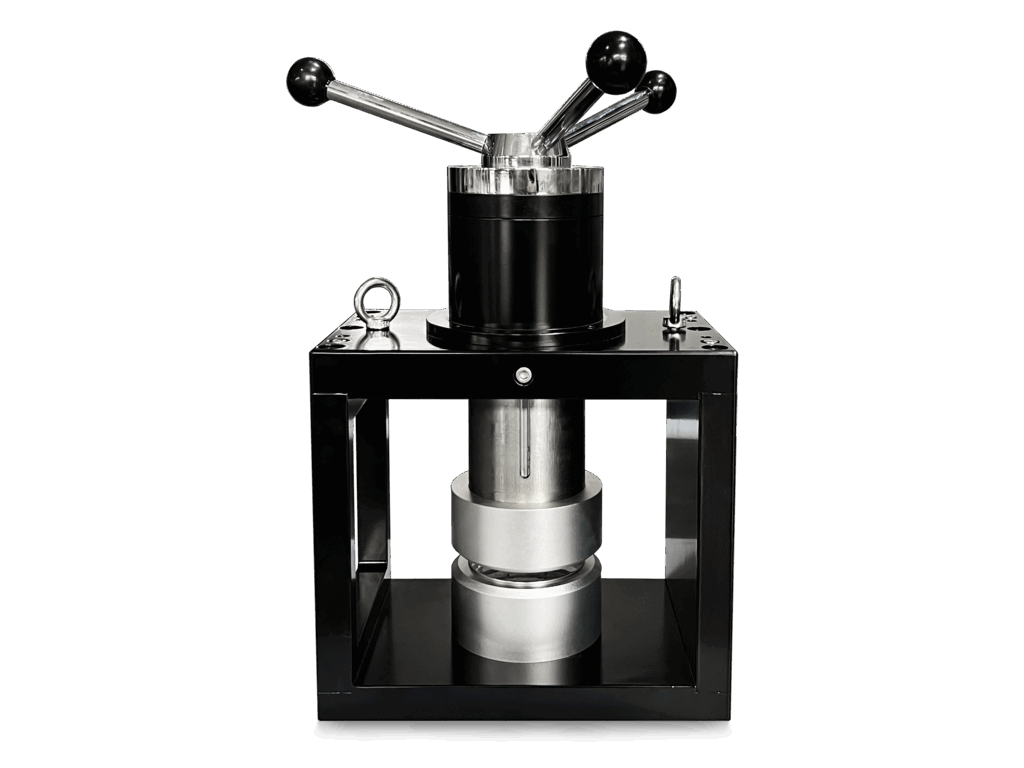

Learn MoreVariable-Magnetic-Field Permanent Magnet
Product Description
Variable-Magnetic-Field Permanent Magnet is an innovative magnetic device that changes the magnetic field strength by adjusting the air gap, and which is widely used in various experiments and industrial applications that require variable magnetic fields. By combining precision mechanical design with high-performance rare earth materials, adjustable permanent magnets can flexibly adjust their magnetic field strength without the need for excitation current, providing multiple magnetic field environments to meet different application needs. -

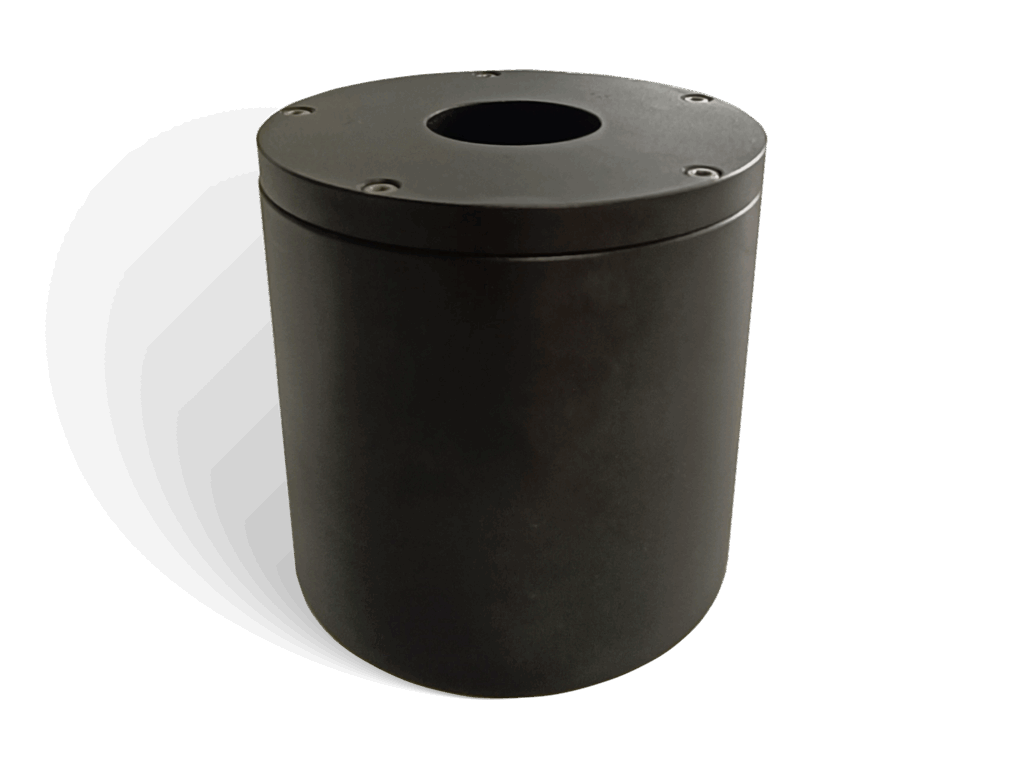

Learn MoreHalbach permanent magnet
Halbach permanent magnet
Halbach permanent magnet is a magnetic ring made from a specially arranged array of permanent magnets, capable of generating a strong one-sided magnetic field inside or outside of the ring, while there's almost no magnetic field on the other side. This design significantly improves magnetic field utilization efficiency and is widely used in high-performance magnetic devices such as particle accelerators, magnetic resonance imaging (MRI), and high-precision magnetic measurement equipment. -

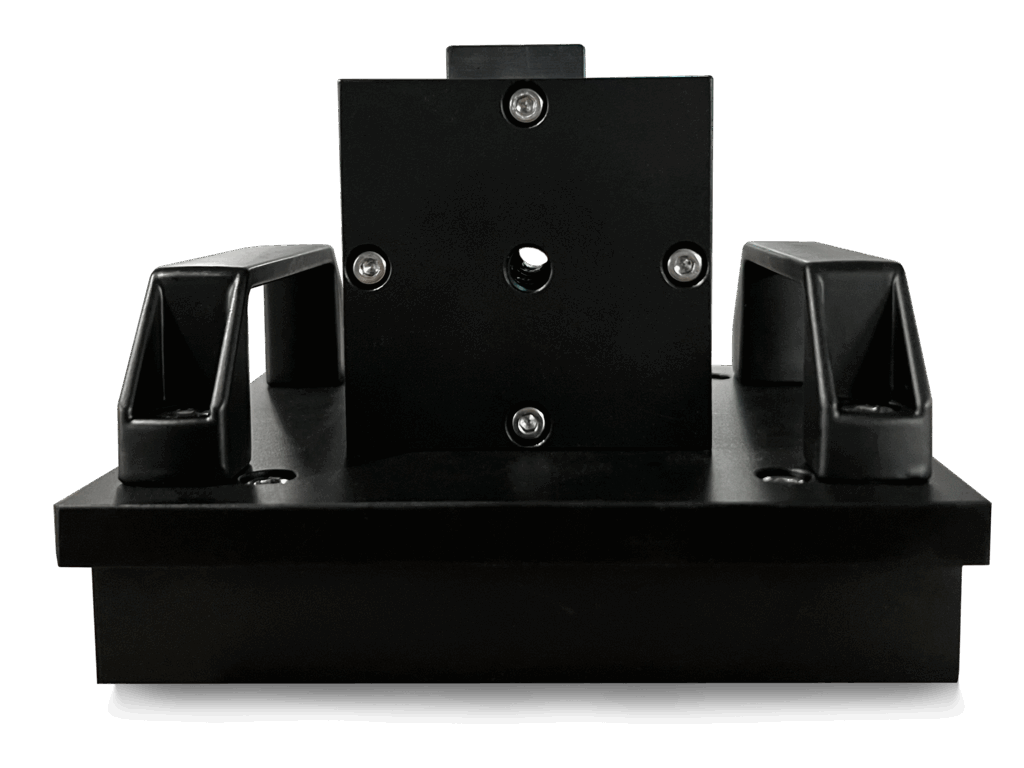

Learn MoreAxial-Direction Permanent Magnet
Product Description
The Axial-Direction Permanent Magnet is composed of the array of Neodymium-Iron- Boron Magnets which have a special shape. The magnet features a Through Hole in the Central Axis of the magnetic field, the high Magnetic Field Strength, and Small Size. It is suitable for Optical Experiments and the Probe Calibration along the Axis Direction.
Learn More About Our Products
-
Axial-Direction Permanent Magnet
The Axial-Direction Permanent Magnet is composed of the array of Neodymium-Iron- Boron Magnets which have a special shape. The magnet features a Through Hole in the Central Axis of the magnetic field, the high Magnetic Field Strength, and Small Size. It is suitable for Optical Experiments and the Probe Calibration along the Axis Direction.
-
YPD Series DC Power Supply
This power supply is a high stability bipolar constant current power supply (smooth zero crossing commutation without delay). The power supply adopts a linear power supply structure, with high output current stability, low ripple and noise. The output current of the power supply can be continuously changed between positive and negative rated maximum current, and the current is smooth and continuous zero, which can generate a smooth and stable magnetic field in the electromagnet or coil. With our high precision Gauss meter and probe (optional), the power supply can operate in magnetic field mode. The magnetic field value can be directly set in magnetic field mode,The power supply will adjust the output current to make the electromagnet quickly reach the set magnetic field, convenient and fast, and the magnetic field is stable.It can control the field independently or scan the magnetic field continuously. The current mode and magnetic field mode can be switched at any time according to the need, and the operation is flexible.
-

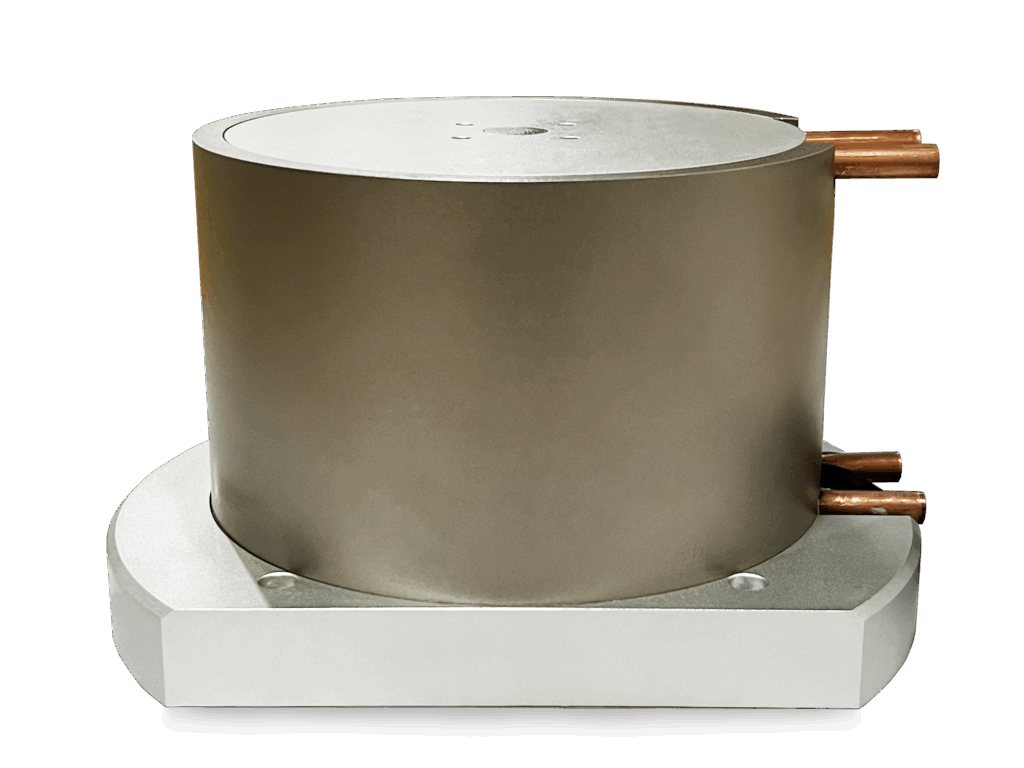

Single-Pole Electromagnet
Single-Pole Electromagnet is an open loop electromagnet consisting of a single pole cap. The main advantages of this electromagnet are open structure and large operating space This electromagnets are equipped with a pair of standard replaceable pole caps made of purity iron, which can be replaced to suit to individual experiment requirements. The pure-iron structure is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time.
-
HAP Series DC Power Supply
Programmable DC power supply is a high-performance DC power supply specially developed for scientific research and industrial applications in power automation control.<br/> This series power supply has excellent electronic characteristics such as high accuracy, precision, and stability, designed with comprehensive over-voltage and over-temperature protection circuits, resulting in higher reliability of the products, and can be used to edit voltage, current and time parameters by the host computer through the panel keyboard or through the communication interface to achieve programmable automatic testing. It is widely used in excitation of inductive loads such as electromagnets and Helmholtz coils.
-
The dynamic magnetic field active geomagnetic shielding system
The dynamic magnetic field shielding effect can reach a higher level (better than 5 nT). By using AC current to generate a magnetic field, it has higher DC and AC magnetic field shielding efficiency, more accurate trajectory tracking function, larger range, and higher response speed. The ability to generate magnetic fields with three components X, Y, and Z within the range of (0-100000 nT) magnetic fields can be precise up to 5 nT, making products and experiments in scientific research, military industry, and medical care extremely meaningful and widely used.
-
Three-Axis Equal-Diameter Coil
The Three-Axis Equal-Diameter Coil, which is a type of three-axis Helmholtz coil exclusively developed by our company, features the nominal diameter coil, the same number of winding turns, and the same specification of wires per axis.<br/> This winding construction allows the Three-Axis Equal-Diameter Coil to have the same resistance, inductance, homogeneity, and B/I coefficient per axis; The coil per axis is fixed to each other in the embedded form, of which this mechanical structure makes the coil to feature a small size and the greater accessibility to the working gap; the whole former is made of non-magnetic PMMA material, which is applied for the study of low and weak magnetic field, and which is very suitable for the shielding room and the magnetic shield. The highest magnetic field of a three-axis equal diameter coil can be designed to be from 0 to 5 Gs.
-
High Homogeneity coil
High Homogeneity coil, which is composed of multi-ring coils arranged along the axial direction, includes the common coils such as Barker Coil, Braunbek Coil, Maxwell Coil, Rubens Coil, and Magnetic-Moment-Free coil. Compared with the Helmholtz coil, the combined coil features the better magnetic field homogeneity under the same diameter, the higher homogeneity and larger homogeneity volume in the effective space, and is suitable for the high-precision and large-range magnetic field needs. This design can meet any parameter customization requirements.
-
WDS Series Electromagnet
The WDS electromagnet is a C-Frame, variable air gap magnetic field generation equipment with each pole being adjustable. From the excitation of the excitating power source, the field vector forms a closed loop, and a high uniform magnetic field can be generated between two poles, and the field direction is along the axial direction of pole caps. All WD electromagnets are equipped with a pair of standard replaceable pole caps made of purity iron, which can be replaced to suit to individual experiment requirements. The pure-iron structure is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time.
-
Standard Permanent Magnet
A standard Magnet is a kind of permanent magnet which is specially designed for Hall Element Calibration,capable of generating a stable and uniform magnetic field between two magnetic pole.<br/> The Standard Magnets are manufactured with high-performance rare earth materials to ensure long-term maintenance of its excellent magnetic properties, and which is widely used in a variety of fields requiring accurate magnetic field calibration, such as laboratories, metrology institutes and industrial testing equipment
Permanent Magnet Product Accessories
-
Closed Loop Control System
WD type closed-loop control system
-
Power Line
WD type electromagnetic power cord
-
Probe Holder
WD type electromagnetic probe holder
-
Pure Iron Tip
WD type electromagnet pure iron pole head
-
High precision electric control turntable
WD type high-precision electromagnetic control turntable
-
Manual Turntable
WD type manual turntable
